Chaff Cutting Requirements for Medium and big Size Dairy & Goat Farms


World first single phase motor operated chaff cutter cum pulverizer with 2 tons per hour:-

            Farmer with Medium and big Dairy or Goat Farm with, 30 to100 cows, 500 Goats, has the feed requirement from 1000 Kg to 3000 Kgs, and 1000 Kg / day respectively.

This machine designed to run with single phase electric motor which is specially designed By Thumba R&D team. This is the world's highest output machine in green fodder cutting with single phase power. This machine is the only option for medium and big farms where single phase power is the only option. It can cut dry fodder also.

Here Thumba's Single Phase maximum output Dual Purpose 2000 Kg / Hour machine place major role in meeting both Chaff Cutting as well as Pulverizing application, which replace going for two separate machines and its maintenance.

This model mainly used for big Dairy and Goat farms where single phase current is the only option.

You can upgrade this machine output by only change the motor into three phase 5 or 7.5 hp motor whenever you get three phase power. Here you can get more than 3 tons per hour in green fodder cutting.

  • 1. Can Run in Single Phase Home Current and Three Phase Current
  • 2. Maintenance Free Operation
  • 3. Sharpening of Cutting edges once in 6 months
  • 4. No Spares required upto 3 years
  • 5. Mainly Operator Safety

service

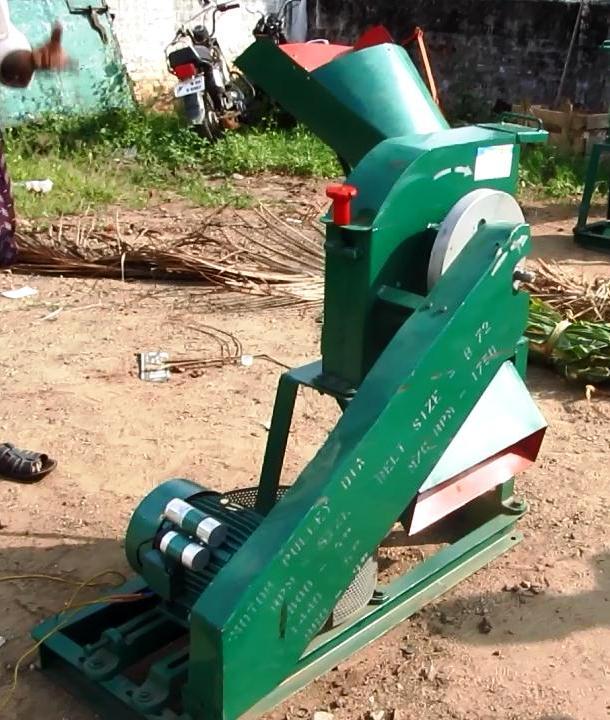

2 Tons/ Hour Machine

Technical Specifications:
1. Power requirement : Thumba 2 hp single phase motor or Three Phase 5hp
2. Chaff Cutting Output : 2000 Kg / Hour
3. Pulverizing Output : 120 Kg / Hour
4. Recommended For : 30 to 100 Animals Dairy Farms Upto 250 to 300 Goat Farms
5. Number of Cutting Edges: 4 Nos
6. Screens Available : 2mm, 3mm & 5mm
7. Solar Power Support : Yes it can operate with 4800 Watt Solar Panel System
