First of all our Customers must know the difference between chipper machines and shredder machines.
In chipper machines input materials cut into small pieces. The output chip size depend on shape of input material size , diameter and hardness. For example if you give coconut leaf with 6 inches diameter means each and every cut pieces comes out with 16 mm thick and 16mm to 50mm broken chips.. Because this type of machines only chip the materials into small pieces. Normally chipper has 2 to 4 cutting blades and 1 stationary blade.The output capacity is very high when compare to shredders. Excellent suitable for organic farming and vermi composting.
Shredder machines having multiple shredding blades which are act as a hammers to beat and shred the materials into very small particles from 5 to 10 mm in size. For this maximum shredding force 12 to 36 shredding beaters fixed on single shaft and joined with dynamically balanced rotor. So you can get very small fine chips than chipper machines. This will support to speed up the compost making process. Also these type of machine is suitable for briquette biofuel manufacturing factories.
We make our machines in two categories to suit customers individual applications. One is chipper machines another one is both chipper&shredder machines
As a successful joint venture with Bhide, now Thumba proudly introduced complete Steel constructed world class chipper & Shredder machines for agriculture waste shredding and vermi composting. Coconut leaves (20 ft. Length), Tree Branches (upto 5 inch dia) Banana Tree (Whole Tree up to 11 inch Dia) and Commercial Municipality wastes can be shredded easily with very high speed. The rotor plate made up of 25mm to 35mm steel moulded part connected with hardened alloy steel cutting Edges. Therefore the Durability of the Cutting Edges is very high, So it runs more hours with less maintenance than any other machines .
These machines can be operated by Electric Motors, Oil Engines, Power Tillers and Tractor PTO also.
No other machines can beat our machines for heavy duty performance and year of reliable service.
For small scale chipping applications in personal gardening and parks this is an ideal machine for easy handling and portability. It can be runs with single phase 2 hp electric motor which is available in almost all areas.
| 1. | Power | : | Single Phase 2 HP |
| 2. | Max input size | : | Tree branches up to 1.5 inches Coconut leafs up to 4 inches |
| 3. | Output chip size | : | 5 to 20mm |
| 4. | Chipping capacity | : | 300 kgs/hour |
| 5. | Screen sizes | : | 50 mm , 40 mm and special screens |
| 6. | Suitable for | : | Personal gardening waste management,Organic farming, Briquette industries and composting |
For medium scale coconut farms with 100 to 300 trees complete waste shredding and other small tree branch shredding applications 7.5 hp motor operated chipper&shredder machines are very good suitable for organic fertilizer production and small scale vermicomposting sectors. This machine is best suitable for permanent factory setup applications like briquette industries and municipality waste management sectors.
| 1. | Power | : | three Phase 7.5 to 10 HP |
| 2. | Max input size | : | Tree branches up to 2 inches Coconut leafs up to 6 inches |
| 3. | Output chip size | : | 5 to 20mm |
| 4. | Chipping capacity | : | 400 kgs to 800 kgs/hour |
| 5. | Screen sizes | : | 50 mm , 40 mm and special screens |
| 6. | Suitable for | : | Municipality waste management,Personal gardening waste management, coconut farm waste shredding,Organic farming, Briquette industries and composting |
For medium and large scale coconut farms with 500 to 1000 trees complete waste shredding and other medium size tree branch shredding applications 15 to 20 hp motor operated chipper&shredder machines are very good suitable for organic fertilizer production and medium scale vermicomposting sectors. This machine is best suitable for permanent factory setup applications like briquette industries and municipality waste management sectors.
| 1. | Power | : | Three Phase 15 to 20 HP |
| 2. | Max input size | : | Tree branches up to 2.5 inches Coconut leafs up to 6 inches |
| 3. | Output chip size | : | 5 to 20mm |
| 4. | Chipping capacity | : | 1000 kgs to 1200 kgs/hour |
| 5. | Screen sizes | : | 50 mm , 40 mm and special screens |
| 6. | Suitable for | : | Municipality waste management,Medium scale coconut farm waste shredding, Organic farming, Briquette industries and composting |
For large scale permanent fixed chipping applications in agro industries and briquette industries this machine is suitable. It needs 20 to 30 hp electric motor or more than 45 hp diesel engine for its better performance.
| 1. | Power | : | 20 to 30 hp electric motor |
| 2. | Max input size | : | Tree branches up to 4 inches Coconut leafs up to 11 inches Banana trees up to 12 inches |
| 3. | Output chip size | : | 25mm to 50mm |
| 4. | Chipping capacity | : | 2000 kgs to 3000 kgs/hour |
| 5. | Screen sizes | : | No screens in this machine |
| 6. | Suitable for | : | For agriculture and municipality waste management,Banana tree chipping, large scale coconut farm waste shredding,Organic farming, and composting |
For large scale coconut farms with 500 to 1000 trees complete waste shredding and other medium size tree branch shredding applications tractor operated chipper&shredder machines are very good suitable for organic fertilizer production and medium scale vermicomposting sectors.
For hiring purpose this is the cheap and best model for all types of farmers.
| 1. | Power | : | Above 30 to 60 hp any brand tractor |
| 2. | Max input size | : | Tree branches up to 3 inches Coconut leafs up to 8.5 inches |
| 3. | Output chip size | : | 5 to 20mm |
| 4. | Chipping capacity | : | 1000 kgs to 1200 kgs/hour |
| 5. | Screen sizes | : | 50 mm , 40 mm and special screens |
| 6. | Suitable for | : | Medium and large scale coconut farm waste shredding,Organic farming, Briquette industries and composting |
This machine is designed to runs with electric motor and tractor.So it highly recommended for briquette industries and For large scale coconut farms with 500 to 1000 trees complete waste shredding and other medium size tree branch shredding applications tractor operated chipper&shredder machines are very good suitable for organic fertilizer production and medium scale vermicomposting sectors.
| 1. | Power | : | It can be operated by above 30 to 60 hp any brand tractor (or) 15 to 20 hp electric motor |
| 2. | Max input size | : | Tree branches up to 3 inches Coconut leafs up to 8.5 inches |
| 3. | Output chip size | : | 5 to 20mm |
| 4. | Chipping capacity | : | 1000 kgs to 1200 kgs/hour |
| 5. | Screen sizes | : | 50 mm , 40 mm and special screens |
| 6. | Suitable for | : | Briquette industries,Medium and large scale coconut farm waste shredding,Organic farming, and composting |
This machine is mainly used for banana tree chipping and large coconut farms with more than 200 to 10000 tree waste chipping works.
This machine comes with Top and Bottom discharge versions. You can use outputs on top for direct loading to trailers or by bottom discharge port based on your convenience.
| 1. | Power | : | Above 35 to 60 hp any brand tractor |
| 2. | Max input size | : | Tree branches up to 4 inches Coconut leafs up to 11 inches Banana trees up to 12 inches |
| 3. | Output chip size | : | 25 to 50mm |
| 4. | Chipping capacity | : | 2000 kgs to 3000 kgs/hour |
| 5. | Screen sizes | : | No screens in this machine |
| 6. | Suitable for | : | For Banana tree chipping, large scale coconut farm waste shredding,Organic farming, and composting |
This is an ideal suitable machine for small scale farmers to meet their all purposes like chipping of coconut leafs and agricultural wastes, very high speed chaff cutter with 3 tons per hour chaff cutting output for dairy farms. And very good pulverizer in dairy and agricultural industry sectors. So this will do all essential works in all agricultural sectors.
| 1. | Power requirement | : | Power tiller with 10 to 18 hp engine. |
| 2. | 3 works in 1 machine | : | Chipping agro wastes =1000 Kg / Hour Chaff cutting fodders = 2500 kg/hour Pulverizing maize,cereals = 700 kg/hour |
| 3. | Input capacity | : | Coconut leafs - up to 6 inches diameter Tree branches up to 1.5 inches diameter |
| 4. | Output chip size | : | 16mm to 25mm. leaves comes out with 3 to 4 inches |
| 5. | Recommended For | : | Organic farming agro waste chipping Dairy farming chaff cutter Agro industries pulverizer |
| 6. | Number of Cutting Edges | : | 4 Nos |
| 7. | Screens Available | : | plain screen and many size perforated screens |
| 8. | Diesel consumption | : | 1 to 1.2 liter per hour. |
We select chipper and shredder 50 hp motor operated machine with heavy duty design with the capacity of 1.5 to 3 tons per hour based on screen size used. We have 3 types in screen sizes. 50 mm , 40 mm and 25 mm screens for individual customers requirements. For your coconut leaf shredding purpose 40 mm screen is best suitable size foe maximum output with required 20mm chip outputs.
For Large scale chipping and shredding applications in agriculture waste shredding sectors especially briquette industries this is an ideal machine for heavy duty chipping and shredding purpose.. This machine runs with three phase 50 hp electric motor as well as engine.
| 1. | Power | : | 50 HP Electric Motor Operated |
| 2. | Max input size | : | Dry Tree branches up to 3 inches diameter Coconut leafs up to 11 inches diameter |
| 3. | Output chip size | : | 5 to 50mm |
| 4. | Shredding capacity | : | 1500 to 3000 kgs/hour based on screen size used and input material hardness |
| 5. | Screen sizes | : | 50 mm , 40 mm, 25 mm and special screens on demand |
| 6. | Suitable for | : | Waste shredding in agriculture industries, Briquette industries and composting |

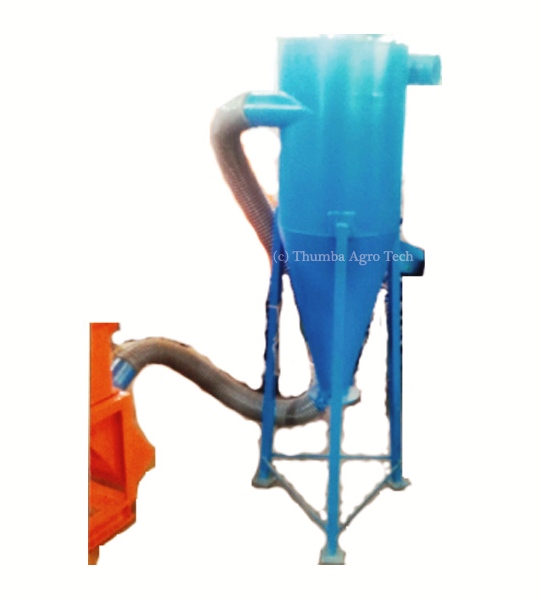

Cyclone dust collector for 50 hp chipper and shredder machine. It needs 3 hp powered electric motor for its better dust collection during machine operation.
