Rain guns for 6 to 10 hp electric pump sets

Three phase 6 hp high pressure motor (Designed and supply by Thumba's Own R&D)

            We have 2 models in 6 hp. One is for ground level water tank to support for 3 basic rain guns and another one designed for open well and low depth bore wells up to the depth of 60 feet.

In case farmer has more than 50 feet depth open well means you must select our 6 hp high pressure pump sets with 5 kg/cm2 maximum pressure and 450 LPM discharge model for direct running of 2 rain guns.

You can run 2 nos of basic rain guns 1.25 inches inlet size and 150 LPM discharge models. Here maximum coverage is 65 feet radius. You can run 2 nos by our 6 hp motor with 45 meter head and 450 LPM discharge capacity model. But you must put the motor in open well or bore well within 60 feet depth only. If depth is more than 70 feet means you must select our next 7.5 hp multi stage motors to get proper pressure and discharge.

service

Three phase 7.5 hp high pressure motor (Designed and supply by Thumba's Own R&D)

            We have again 2 models in 7.5 hp. One is for ground level water tank to support for 3 nos of 1.5 inches rain guns and another one designed for open well and low depth bore wells up to the depth of 60 feet.

In case farmer has more than 60 feet depth open well means you must select our 7.5 hp high pressure pump sets with 6 kg/cm2 maximum pressure and 600 LPM discharge model for direct running of 3 basic rain guns or single rain gun with 100 feet radius.

You can run 2 nos of basic rain guns 1.5 inches inlet size and 250 LPM discharge models. Here maximum coverage is 80 feet radius. You can run 2 nos by our 7.5 hp motor with 65 meter head and 600 LPM discharge capacity model. But you must put the motor in below 70 feet open well or bore well within only. If depth is more than 70 feet means you must contact with us for final design of rain gun system to get proper pressure and discharge.

service

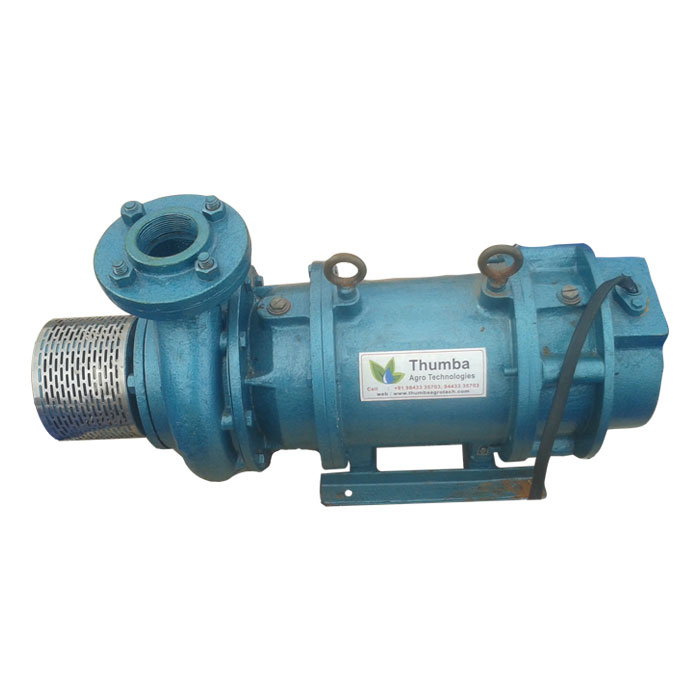

Thumba 6 HP Pump

Technical Specifications:
1. Power - HP or kw : 6 HP or 4.4 kw
2. Operating voltage : Three phase 320 to 475 v AC
3. Discharge Maximum : 600 LPM .
4. Pressure maximum : 3.2 kg/cm2
5. Head range : 17 to 30 meters
6. No of 1.25 inch Rain gun runs : 3 nos with each 120 feet diameter
7. No of 1/4" Sprinkler runs : 14 nos with each 80 feet diameter
8. No of Tublex Rain gun runs (2") : 1 nos with each 170 feet diameter
9. Area covers with 4 Rain guns-1.25" : 1 acres in round pattern
10. Time to wet 3 inches depth : 1.5 hours
11. Best suitable depth of water source : Below 40 feet open wells .
12. Power consumption : 4 unit per hour.
service

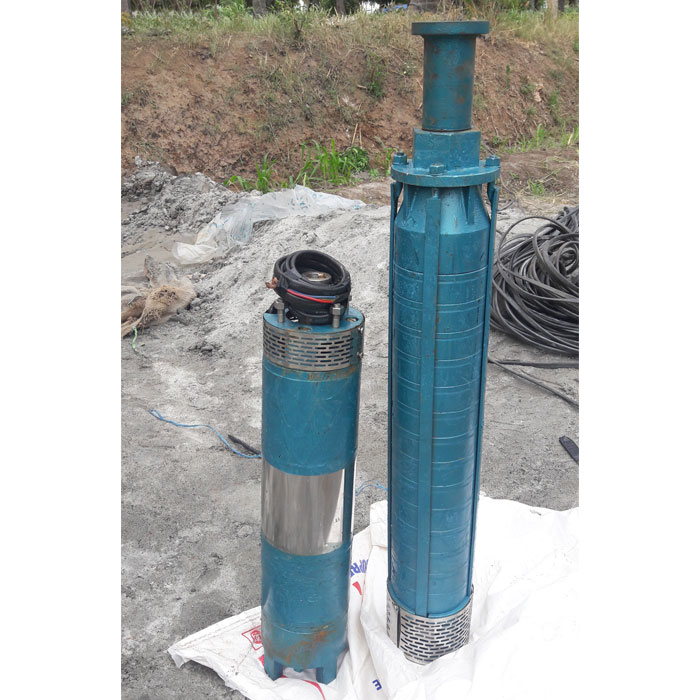

Thumba 6 HP Verticle High Head Multi Stage Pump

Technical Specifications:
1. Power - HP or kw : 6 HP or 4.4 kw 6 Stages
2. Operating voltage : Three phase 350 to 475 v AC
3. Discharge Maximum : 450 LPM .
4. Pressure maximum : 4 kg/cm2
5. Head range : 25 to 40 meters
6. No of 1.25 inch Rain gun runs : 2 nos with each 120 feet diameter
7. No of 1/4" Sprinkler runs : 12 nos with each 80 feet diameter
8. Area covers with 4 Rain guns-1.25’’ : 1 acres in round pattern
9. Time to wet 3 inches depth : 1.5 hours
10. Best suitable depth of water source : Above 40 feet and below 50 feet open wells or Bore wells .
11. Power consumption : 4 unit per hour.

Thumba 7.5 HP Verticle High Head Multi Stage Pump

Technical Specifications:
1. Power - HP or kw : 7.5 HP or 5.5 kw 6 Stages
2. Operating voltage : Three phase 350 to 475 v AC
3. Discharge Maximum : 600 LPM .
4. Pressure maximum : 5 kg/cm2
5. Head range : 35 to 45 meters
6. No of 1.25 inch Rain gun runs : 3 nos with each 120 feet diameter
7. No of 1/4" Sprinkler runs : 15 nos with each 80 feet diameter
8. Area covers with 3 Rain guns-1.25" : 0.75 acres in round pattern
9. Time to wet 3 inches depth : 1.5 hours
10. Best suitable depth of water source : Above 40 feet and below 60 feet open wells or Bore wells .
11. Power consumption : 5.5 unit per hour.
service
service

Thumba 10 HP Verticle High Head Multi Stage Pump

Technical Specifications:
1. Power - HP or kw : 10 HP or 7.5 kw 10 and 16 Stages
2. Operating voltage : Three phase 350 to 475 v AC
3. Discharge Maximum : 300 to 400 LPM .
4. Pressure maximum : 10 to15 kg/cm2
5. Head range : 100 to 150 meters
6. No of 1.25 inch Rain gun runs : 2 nos with each 120 feet diameter
7. No of 3/4" Sprinkler runs : 10 nos with each 80 feet diameter
8. Area covers with Rain guns-1.25" : 0.5 acres in round pattern
9. Time to wet 3 inches depth : 1.5 hours
10. Best suitable depth of water source : Above 150 feet and below 300 feet open wells or Bore wells .
11. Power consumption : 7.5 unit per hour.
