RainGun Sprinkler Irrigation System - By Area (0.5 to 1 Acre)


RainGun Sprinkler Irrigation System - By Area (0.5 to 1 Acre)

If the land area falls between 0.5 to 1 Acre you must go for small sprinkler system. You can decide permanent or temporary erection according to the crop pattern and your convenience. Raingun are not suitable for this small area. Because the corner correction and uniform sprinkling is very difficult. But in small sprinkler system we designed and install to cover all the area even irregular corners.

We have Many Model Sprinklers to suite individual irrigation requirements. Here we shows Popular widely used few models.

Suitable Sprinkler Models and its Specifications


Mini Sprinkler

1. Inlet Size : 1/2 Inch
2. Pressure : 1 to 3 Kg/cm2
3. Discharge : 10 to 13 LPM
4. Suitable For : Onion, Brinjal, Flower Crops, Tomato , Chilly, Cauliflower, Nurseries, Fodder Crops.
5. Working Method : Half Circle and Full Circle
6. Area Coverage : 30 Feet Radius at 2 kg/cm2
7. 5 HP Motor Runs : 30 to 45 Sprinklers covers 1/2 to 3/4 Acre at a Time.

Our Strong Suggested Model for Small Area Irrigation, where small droplet size is the main point. And Also it Produce More than 30 percent Mist which develops favourable micro climate for the plants.

service
service

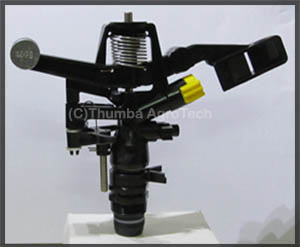

Impact Plastic Sprinkler

1. Inlet Size : 3/4 Inch
2. Pressure : 2 to 4 Kg/cm2
3. Discharge : 36 to 42 LPM
4. Suitable For : Fodder Crops,Vegetables, Brinjal, Onion, Flower Crops, Tomato , Chilly, Cauliflower.
5. Working Method : Half Circle and Full Circle
6. Area Coverage : 46 Feet Radius at 2.8 kg/cm2
7. 5 HP Motor Runs : 10 to 12 Sprinklers covers 40 Cents to 60 Cents at a Time.

Micro Sprinkler

1. Inlet Size : 1/2 Inch
2. Pressure : 0.5 to 1.5 Kg/cm2
3. Discharge : 4 to 8 LPM
4. Suitable For : Vegetables, Onion, Tomato , Chilly, Cauliflower, Nurseries, Brinjal , Flower Crops.
5. Working Method : Only Round Pattern
6. Area Coverage : 10 to 15 Feet Diameter
7. 5 HP Motor Runs : Upto 80 Sprinklers covers 60 Cents to 70 Cents at a Time.

Micro Sprinklers are widely recommended for minimum Area Irrigation Only. No doubt this sprinkler develops good micro climate. We suggest this model for short term Irrigation applications.

service

Mini Micro Sprinkler

1. Inlet Size : 3/8 Inch
2. Pressure : 1.5 to 2.5 Kg/cm2
3. Discharge : 30 to 48 LPH
4. Suitable For : Estate Crops, Cardamom, Nurseries, Home Gardens.
5. Working Method : 360 Degree Round Pattern
6. Area Coverage : 5 to 10 Feet Diameter
7. 1 HP Motor Runs : 50 to 100 Sprinklers covers 2000 to 10000 Sq. Feets at a Time.

Mini Micro Sprinklers are widely recommended for deligate crops. No doubt this sprinkler develops good micro climate with increase humidity.
